Verification of rope manufacture, diameter measurement and tensile test for round steel wire rope for lifts according to:
-
ISO 4344:2004,
-
EN 12385-1:2002+A1:2008,
-
EN 12385-5:2002+AC:2005.
Modulus of Elasticity Test
Determination of the actual modulus of elasticity of steel wire rope according to ISO 12076:2002.
Wire Properties Tests

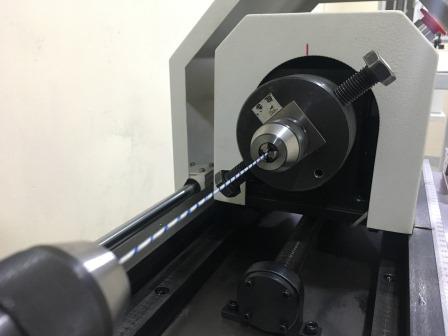

Diameter & ovality measurement, Tensile test, Reverse bend strength test and torsional strength test according to:
-
EN 10264-1: 2012,
-
EN 10264-2:2012,
-
ISO 2232:1990,
-
ISO 4101:1983.

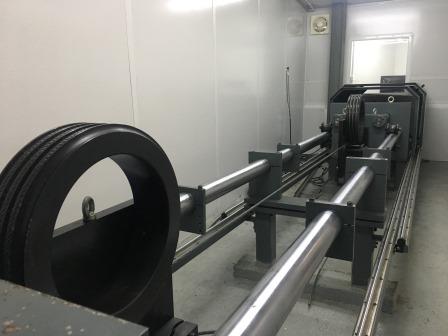

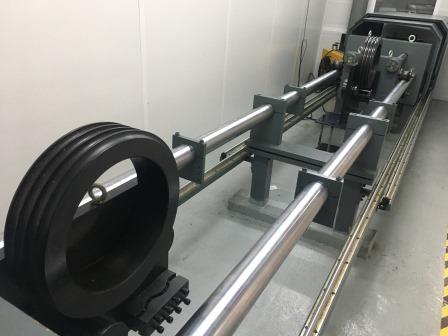

Compression & Tensile Load Test
Tensile load test for rope and compression load test for workpiece can be performed according to customer specification.

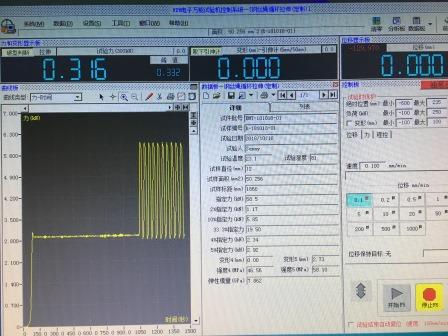

Modulus of Elasticity Test
Determination of modulus of elasticity of steel wire rope can be programmed and automated in the test machine according to customer specifications.
Lubricant Content Test
Rope lubricant content can be measured as a rope total or separate for a strand, for a steel-core or for a fiber-core.

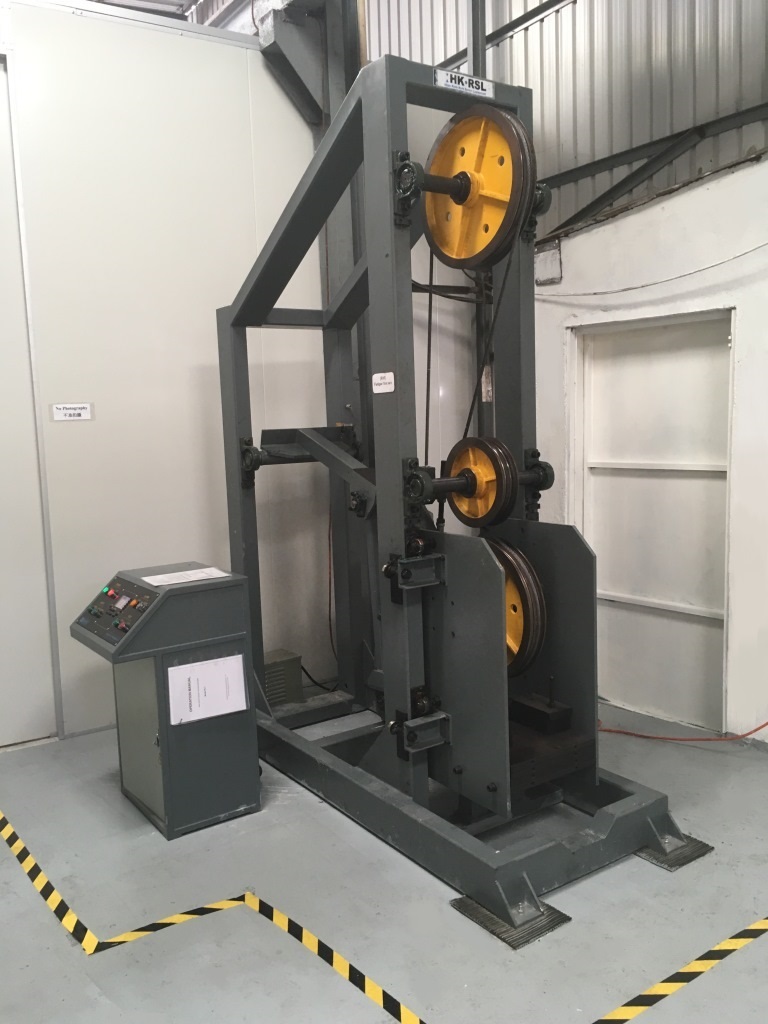

Wire Rope Fatigue Test
Fatigue life and stretch characteristics of wire rope can be evaluated according to customer specifications.
